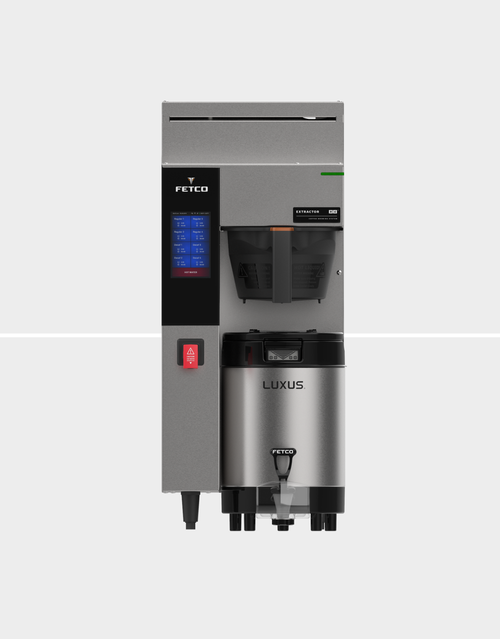

Fetco CBS-2231 NG 1 Gallon Single Coffee Brewer (Dual Voltage)

High-Performance 1-Gallon Coffee Brewer | Fetco CBS-2231 NG – Dual Voltage Commercial Brewer for Cafes and Offices

Item number:

E2231US-1X117-MA011 (Metal)

E2231US-1X117-PA011 (Plastic)

Introducing the Fetco CBS-2231 NG Single Station Coffee Brewer, an excellent solution for serving hot beverages in low to medium-volume self-service settings such as convenience stores, cafeterias, specialty coffee shops, or office coffee services (OCS). Designed for smaller batch brewing, this brewer delivers the renowned features and reliable performance of the Extractor® brand at a cost-effective price.

Please note: Coffee server is sold separately.

• LED Touchscreen Interface – Provides an intuitive and easy-to-use interface.
• Brew Status Indicator Light – Lets you know when your coffee is ready.
• Plastic Brew Basket – Lightweight and durable for easy handling.
• Brew Basket Sensors and Locks – Ensures safety and efficiency during brewing.
• Manual Hot Water Faucet – Convenient access to hot water for tea and other beverages.
• ECO Mode – Energy-saving feature that reduces power consumption.
• USB Plug-in Feature – Allows for easy firmware updates and settings adjustments.
• Electrical Lattice – Enhances electrical performance and stability.
• Laser Welded Tank – Durable, long-lasting tank construction for extended use.

• Height: 26.25 in / 66.7 cm
• Width: 11.75 in / 29.9 cm
• Depth: 20.5 in / 52 cm
• Shipping Weight: 41 lbs / 18.6 kg

Brewing Capacity:

• Tank Capacity: 3 gallons / 11.36 liters
• Cups per Hour:
• 8 oz (236 ml): 127 cups/hr
• 12 oz (355 ml): 85 cups/hr
• 16 oz (473 ml): 63 cups/hr
• 20 oz (591 ml): 51 cups/hr

Water Specifications:

• Water Inlet Size: 3/8" Male Flare
• Minimum Flow Rate: 1.5 gpm
• Water Pressure Requirement: 20-75 psig

Electrical Requirements:

For 120 Volts:

• Phase: 1
• Volts: 120
• Amps: 13
• Heat Configuration: 1 x 1.5 kW
• Wire: 2+G
• Recommended Wall Outlet: NEMA 5-15P
• Note: It ships in this configuration from Fetco.

For 240 Volts:

• Phase: 1
• Volts: 240
• Amps: 19.7
• Heat Configuration: 2 x 1.7 kW
• Wire: 3+G
• Note: The electrical cord for 240V is not included.

• Cafés
• Bakeries
• Restaurants
• Bars
• Hotels
• Offices

Every purchase comes with a manufacturer parts warranty, ensuring peace of mind with every use. This brand-new unit is covered for 12 months. Our full-tech house based in Los Angeles, CA, offers complimentary over-the-phone support to assist you every step of the way.

• Protect your investment and guarantee the best taste with our recommended water filtration systems:
• For Single Boiler Machines: BWT Single Cartridge Filter enhances flavor and prevents scale.
• For Double Boiler Machines: Optipure Reverse Osmosis Water System offers maximum purity and protective benefits, perfect for any high-demand setting.
